| Nine folded steel frame design |
| Static load capacity up to 1200 kg |
| Vented front and split rear doors for airflow |
| Quick-adjust vertical mounting rails |
| Lockable removable side panels |

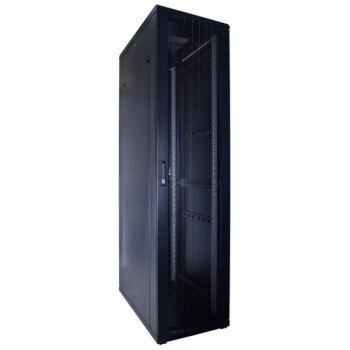

Engineered for secure installation of high-density server and networking equipment in modern data centers. Reinforced nine folded welded frame ensures excellent structural stability and load bearing performance.
Manufactured using SPCC cold rolled steel with vented airflow doors to support effective cooling. Modular side panels and adjustable mounting rails provide flexible installation and service access.
| key features | |
| f1 | Nine folded steel frame design |
| f2 | Static load capacity up to 1200 kg |
| f3 | Vented front and split rear doors for airflow |
| f4 | Quick-adjust vertical mounting rails |
| f5 | Lockable removable side panels |
| General Informatin | |
| Material | SPCC Cold Rolled Steel |
| Model | GCF-8142PD |
| Capacity | 42U Data Center Rack |
| Load Capacity | Static 1200 kg |
| Color | RAL-9005 Black, RAL-7035 Grey |
| Door Type | Vented Front Door, Split Rear Door |
| Dimensions | 800×1000×2000 mm |
| Standards & Compliance | |
| Assembly | Nine Folded Welded Frame |
| Cooling | Vented Door Cooling Design |
| Safety | Advanced Lock Mechanism |
| Additional Features | |
| Cable Management | Built-in Cable Manager |
| Installation | Floor Mount Rack Cabinet |
| Optional Accessories | Casters, Leveling Feet, Rails |
| Panel Structure | Removable Lockable Side Panels |
| Packaging | Build-up Packaging |
