| 10 × Universal output sockets |
| 250V rated voltage |
| 13A rated current |
| Master switch with LED indicator |
| Steel / Aluminum housing options |

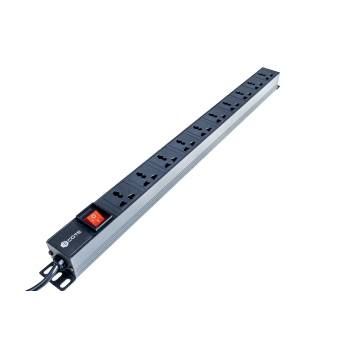

This 1U Universal Power Distribution Unit delivers 250V power through 10 universal output sockets for networking rack installations. It supports both horizontal and vertical mounting configurations within cabinets and racks.
Constructed using steel or aluminum housing with black finish, it includes UK 13A input plug with 2M cable, master switch, and red LED “mains on” indicator. External earth stud provides secure grounding for commercial deployment.
| key features | |
| f1 | 10 × Universal output sockets |
| f2 | 250V rated voltage |
| f3 | 13A rated current |
| f4 | Master switch with LED indicator |
| f5 | Steel / Aluminum housing options |
| General Informatin | |
| Model | CPDU-1U-10US-13AMP |
| Outlet Configuration | 10 × Universal Socket |
| Rated Voltage | 250V |
| Rated Current | 13A |
| Input Plug | UK 13A (BS1363) |
| Input Cable Length | 2 Meter |
| Orientation | Vertical |
| Maximum Power | 3250W |
| Housing Material | Steel |
| Standards & Compliance | |
| safety Authentication | CE |
| RoHS Compliance | Yes |
| Operating Temperature | 0°–60°C |
| Additional Features | |
| Control Function | LED Power Indicator |
| Master Switch | Available |
