| Double shielding (foil + braid) for maximum protection |
| Supports 10Gbps network speed |
| EMI/RFI interference reduction |
| Suitable for PoE / PoE+ applications |
| Backward compatible with Cat6 / Cat6A |

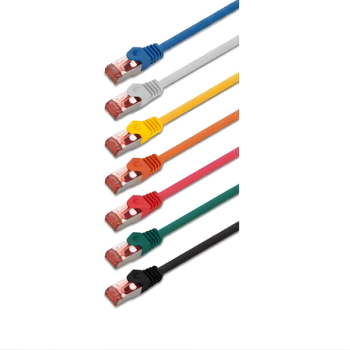

This Cat-6A double fully shielded patch cord is designed for ultra high-performance networking environments, ensuring stable and interference-free data transmission. It supports 10Gbps Ethernet applications, making it ideal for data centers and enterprise networks.
With individual pair shielding and overall braided shielding, it provides maximum protection against EMI/RFI interference. Its compact 0.5 meter length is perfect for short-distance rack and cabinet connections.
| key features | |
| f1 | Double shielding (foil + braid) for maximum protection |
| f2 | Supports 10Gbps network speed |
| f3 | EMI/RFI interference reduction |
| f4 | Suitable for PoE / PoE+ applications |
| f5 | Backward compatible with Cat6 / Cat6A |
| General Informatin | |
| Category | Cat-6A DSTP |
| Connector Type | Shielded RJ45 |
| Model | CPC-2106A-DSTP-0.5M |
| Conductor | Stranded Bare Copper |
| Application | Data Center / Enterprise |
| Jacket | PVC / LSZH |
| Shielding | Individual Foil + Overall Braid |
| Wire Gauge | 26 AWG |
| Lengths | 0.5 Meter |
| Standards & Compliance | |
| Standard | ANSI/TIA-568 Cat6A |
| Ethernet Support | 10GBASE-T |
| Compliance | ISO/IEC |
| Additional Features | |
| Insulation | PE (Foam-Skin) |
| Overall Shield | Tinned Copper Braid |
| Pair Structure | 4 Twisted Pair |
| Color Code | T568A/B |
